PVC PROFİL HATLARI / PPVC PROFILE LINES

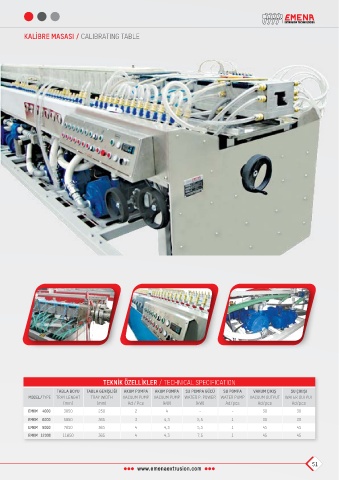

ÇİFT VİDALI EKSTRUDER / DOUBLE SCREW EXTRUDER KALİBRE MASASI / CALIBRATING TABLE
ÇİFT VİDALI EKSTRUDER TEKNİK BİLGİLERİ - PROFİL SERİSİ
TECHNICAL DATA FOR DOUBLE SCREW EXTRUDERS FOR PVC PROFILES
MODEL/TYPE (EMEX DS) 55-20 68-25 77-25 90-25 107-27 135-28 TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATION
Kapasite/Output Rate, Max. [Kg/H] Pp 80 180 230 320 550 800 TABLA BOYU TABLA GENİŞLİĞİ AKUM POMPA AKUM POMPA SU POMPA GÜCÜ SU POMPA VAKUM ÇIKIŞ SU ÇIKIŞI
MODEL/TYPE TRAY LENGHT TRAY WIDTH VACUUM PUMP VACUUM PUMP WATER P. POWER WATER PUMP VACUUM OUTPUT WATER OUTPUT
Isıtma Soğutma Bl/Number of Heating /Cooling Zones 4/4 4/4 5/5 5/5 5/5 7/7 (mm) (mm) Ad / Pcs (kW) (kW) Ad/pcs Ad/pcs Ad/pcs
Motor Gücü/Motor Kw 14 27 33 45 60 110 EMKM 4000 3850 250 2 4 - - 30 30
LD Oranı/Screw Length [L/D 20 25 25 25 27 28 EMKM 6000 5850 365 3 4,3 5,5 1 30 30
Vida Çapı/Screw Diameter [mm] 55 68 75 90 107 135 EMKM 8000 7850 365 4 4,3 5,5 1 45 45
Eksen Yüksekliği/Extrusion Height [mm] 1000 1000 1000 1000 1200 1200 EMKM 12000 11850 365 4 4,3 7,5 1 45 45
